85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper

Product Categories
Anbox Electric Co. Ltd,
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

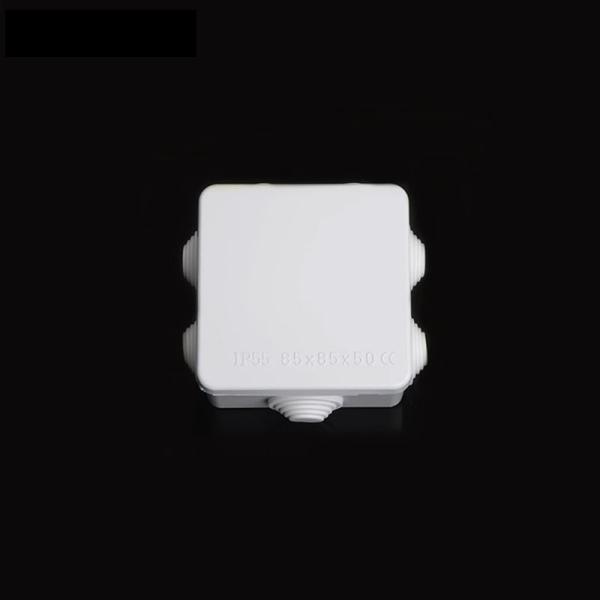

85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper

Brand Name : AnBox

Model Number : RA 85X85X50

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : USD0.95

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs / day

Delivery Time : 5-8 working days

Packaging Details : cartons

Material : ABS

Color : White

Hole quantity : 7

Hole size : ø25mm

IP rating : IP65

Contact Now

85x85x50mm IP65 ABS Waterproof Junction Box Knock-Out Holes With Stopper

Product Description

◇ Body Material: ABS
◇ Stopper Material:PVC
◇ Material Feature: can resistant the stock, heat, low temperature,and chemicals. Excellent electrical properties, good surface gloss
◇ Certification: CE ROHS
◇ Usage: Suitable for indoor and outdoor electrical, communications, fire equipment, steel smelting, Petrochemical, electronics, electric power, railway, construction site, mining field, airport, hotel, ship, large factory, coastal factory, unloading terminal equipment Sewage treatment facilities, environmental pollution facilities and so on.
◇ Installation method:
1. inside of the box have the circuit board or the rails are mounted on the boss
2. External installation:can use the hole of the bottoms of the box directly fixed on the wall (can by the four angles,use the screw or nail fixed the box on the wall or board.
◇ Entry hole: Waterproof Junction Box can be selected according to the size of the wire in the existing hole plug, or with set the waterproof clamping joints, to achieve the best waterproof effect.

Product Drawing

85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper

Model Code Hole Qty Hole Size IP N.Weight GW/CTN NW/CTN Qty/CTN Carton Size Unit price
(USD)
RA 50X50 4 25 55 45 13.5 12.3 300 46X38X51 US$0.92
RA 80X50 4 25 55 68 14.7 13.4 240 53X35X62 US$0.93
RA 85X85X50 7 25 55 86 17.2 16 200 53X41X53 US$0.95
RA 100X100X70 7 25 65 150 17.9 13.5 100 62X49X35 US$1.23
RA 150X110X70 10 25 65 230 15.1 13.8 60 67X33X46.5 US$1.85
RA 150X150X70 8 25 65 270 16.3 15 60 84.5X34X45 US$2.05
RA 200X100X70 8 25 65 260 16.6 15.3 60 61X46X42 US$2.15
RA 200X155X80 10 36 65 360 14.5 13.2 40 69.5X43.5X42 US$2.46
RA 200X200X80 12 36 65 470 18 16.6 40 90X46X40.5 US$3.69
RA 255X200X80 12 36 65 530 21.9 20.1 40 55X45X78.5 US$3.85
RA 255X200X120 12 36 65 630 21.9 20.1 30 64X55X62 US$5.90
RA 300X250X120 12 36 65 900 20.3 18.4 20 61.5X55.5X63 US$8.00
RA 400X350X120 16 36 65 1450 15 13.3 10 74.5X42.5X61.5 US$13.00
